Virtual Base class Inheritance

Came across this interesting case of multiple base class inheritance which can result in compilation errors.

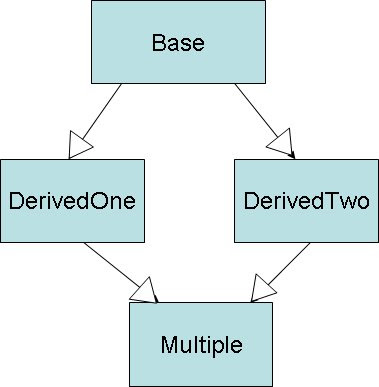

Figure above demonstrates the ambiguity that can occur in diamond inheritance. The program defines class Base, which contains pure virtual function print. Classes DerivedOne and DerivedTwo each publicly inherit from class Base and override the print function. Class DerivedOne and class DerivedTwo each contain what the C++ standard refers to as a base-class subobject—i.e., the members of class Base in this example.

Class Multiple inherits from both classes DerivedOne and DerivedTwo. In class Multiple, function print is overridden to call DerivedTwo’s print.

Function main declares objects of classes Multiple, DerivedOne and DerivedTwo. main also declares an array of Base * pointers. Each array element is initialized with the address of an object. An error occurs when the address of both—an object of class Multiple—is assigned to array[ 0 ]. The object both actually contains two subobjects of type Base, so the compiler does not know which subobject the pointer array[ 0 ] should point to, and it generates a compilation error indicating an ambiguous conversion.

The problem of duplicate subobjects is resolved with virtual inheritance. When a base class is inherited as virtual, only one subobject will appear in the derived class—a process called virtual base-class inheritance.

//Program tested on Microsoft Visual Studio 2008 - Zahid Ghadialy
//Example showing virtual base class inheritance
//http://www.deitel.com/articles/cplusplus_tutorials/20060225/virtualBaseClass/index.html

#include <iostream>
using std::cout;
using std::endl;

// class Base definition
class Base
{
public:
  virtual void print() const = 0; // pure virtual
}; // end class Base

// class DerivedOne definition
//class DerivedOne : public Base - REF1
class DerivedOne : virtual public Base
{
public:
  // override print function
  void print() const
  {
    cout << "DerivedOne\n";
  } // end function print
}; // end class DerivedOne

// class DerivedTwo definition
//class DerivedTwo : public Base - REF2
class DerivedTwo : virtual public Base
{
public:
  // override print function
  void print() const
  {
    cout << "DerivedTwo\n";
  } // end function print
}; // end class DerivedTwo

// class Multiple definition
class Multiple : public DerivedOne, DerivedTwo
{
public:
  // qualify which version of function print
  void print() const
  {
    DerivedTwo::print();
  } // end function print
}; // end class Multiple

int main()
{
  Multiple both; // instantiate Multiple object
  DerivedOne one; // instantiate DerivedOne object
  DerivedTwo two; // instantiate DerivedTwo object
  Base *array[ 3 ]; // create array of base-class pointers

  array[ 0 ] = &both; // ERROR - ambiguous if REF1 and REF2 used
  array[ 1 ] = &one;
  array[ 2 ] = &two;

  // polymorphically invoke print
  for ( int i = 0; i < 3; i++ )
  array[ i ] -> print();

  return 0;
} // end main

The output is as follows:
