Example of C++ class invariant

According to Bjarne Stroustrup in 'The C++ Programming Language':

The values of the members and the objects referred to by members are collectively called the state of the object (or simply, its value). A major concern of a class design is to get an object into a well defined state (initialization/construction), to maintain a well defined state as operations are performed, and finally to destroy the object gracefully. The property that makes the state of an object well-defined is called its invariant.

Thus, the purpose of initialization is to put an object into a state for which the invariant holds. Typically, this is done by a constructor. Each operation on a class can assume it will find the invariant true on entry and must leave the invariant true on exit. The destructor finally invalidates the invariant by destroying the object.

Another way of writing the same thing:

A class invariant is a condition that defines all valid states for an object. It is a logical condition to ensure the correct working of a class. Class invariants must hold when an object is created, and they must be preserved under all operations of the class. In particular all class invariants are both preconditions and post-conditions for all operations or member functions of the class.

The conditions that have to be met for a condition to be an invariant of the class are:
=> The condition should hold at the end of every constructor.
=> The condition should hold at the end of every mutator (non-const) operation.

Lets look at an example. Suppose we are designing a system where the user input some pressure to be applied. The pressure can be between 30 and 100 units. A user should not be allowed to put pressure outside these bounds:


//Program tested on Microsoft Visual Studio 2008 - Zahid Ghadialy
//Example of class invariant
#include<iostream>

using namespace
std;

const
int PressureOverflow = 1;
const
int PressureUnderflow = 2;

const
int MIN_PRESSURE = 30;
const
int MAX_PRESSURE = 100;

class
Pressure
{

public
:
Pressure();
void
setPressure(int p);
void
displayPressure(void) const;
private
:
int
pressureMonitor; //invariant
};

Pressure::Pressure()
{

pressureMonitor = 30;
}


void
Pressure::setPressure(int p)
{

try

{

if
(p < MIN_PRESSURE)
throw
PressureUnderflow;
if
(p > MAX_PRESSURE)
throw
PressureOverflow;
pressureMonitor = p;
}

catch
(int pError)
{

switch
(pError)
{

case
PressureUnderflow:
pressureMonitor = MIN_PRESSURE;
cout<<"ERROR: Pressure should be between "<<MIN_PRESSURE<<" and "<<
MAX_PRESSURE<<" - Value set to "<<pressureMonitor<<endl;
break
;
case
PressureOverflow:
pressureMonitor = MAX_PRESSURE;
cout<<"ERROR: Pressure should be between "<<MIN_PRESSURE<<" and "<<
MAX_PRESSURE<<" - Value set to "<<pressureMonitor<<endl;
break
;
default
:
break
;
}
}
}


void
Pressure::displayPressure(void) const
{

cout<<"Current Pressure set to: "<<pressureMonitor<<endl;
}


int
main()
{

Pressure p;
int
x=0;
while
(1)
{

p.displayPressure();
cout<<"Enter new Pressure: ";
cin>>x;
p.setPressure(x);
}


return
0;
}

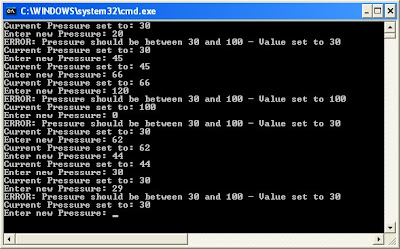

The output is as follows:
