Thursday, 12 March 2009

An example of C++ maps

The following example shows the working of C++ maps. This also has a simple example of union which is sometimes used in C and C++ programs


//Program tested on Microsoft Visual Studio 2008 - Zahid Ghadialy
//This program shows an example of how maps work.
//In maps, the first parameter is key and second value
//The keys in the map are automatically softed from lower to higher
#include<iostream>
#include<map>
#include<string>

using namespace
std;

//defining a union that is used with newMap_
union uu
{

char
c;
int
i;
}
u;

//Lets define two different maps
//The first parameter is key and second value
map<string, int> portMap_;
map<void *, uu> newMap_;

int
main()
{

//first entry in portmap
portMap_["first"] = 1;

//example of using the iterator
map<string, int>::const_iterator it;
string z = "second";
it = portMap_.find(z); //not in the map so wont be found
if(it == portMap_.end())
{

portMap_[z] = 22; //add second element
}

//Add thrid element directly
z = "third";
portMap_[z] = 12345;

//Add 4th element by insert
portMap_.insert(pair<string,int>("fourth", 4444));

//Add 5th element by insert
portMap_.insert(pair<string,int>("fifth", 5555));


cout<<"\n** Printing the portmap_ values **"<<endl;
for
(it = portMap_.begin(); it != portMap_.end(); ++it)
cout<<"Key = "<<it->first<<" Val = "<<it->second<<endl;

cout<<"\n** Removing fourth element **"<<endl;
z = "fourth";
it = portMap_.find(z);
portMap_.erase(it);

cout<<"\n** Printing the portmap_ values **"<<endl;
for
(it = portMap_.begin(); it != portMap_.end(); ++it)
cout<<"Key = "<<it->first<<" Val = "<<it->second<<endl;

//Playing with New Map
cout<<"\n\nCreating New Map whose key is a void pointer"<<endl;

uu u_val1, u_val2;
void
*val1, *val2;
u_val1.i = 70, val1 = &u_val1;
newMap_[val1]=u_val1;

val2 = val1;
map<void *, uu>::const_iterator it_new;
it_new = newMap_.find(val2);
if
(it_new != newMap_.end())
{

u_val2 = it_new->second;
cout<<"Note that since u_val2 is a union you can print i or c as required"<<endl;
cout<<"val2 = "<<val2<<" value.c = "<<u_val2.c<<endl;
cout<<"val2 = "<<val2<<" value.i = "<<u_val2.i<<endl;
}


return
0;
}

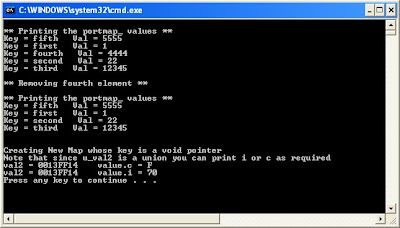

The output is as follows:
